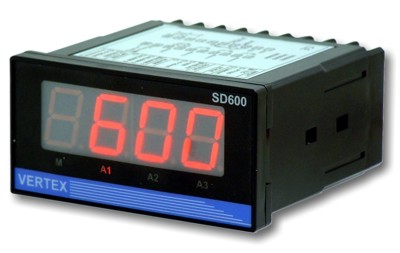

SD600 Indicator

The SD600 is a low cost digital indicator, designed to provide a high level of accuracy at a competitive price.

The configuration keys are hidden behind the front panel membrane to prevent accidental operation and a parameter lock facility is available for greater security.

A single alarm output is provided as standard, with 6 different alarm modes of operation. A second and third alarm output can be provided if required.

A DC voltage output is also provided the supply required by many transducers and signal converters.

The shallow depth of the 'SD600' Series allows them to be used in applications that have minimal space behind the mounting panel.

The SD600 includes the following features:-

• 3 independant alarms.
• Simplified sensor and range setting.
• Universal power supply: 90 - 264V ac.
• 24V dc sensor supply output. (10V dc optional)

Technical Specification

Value

Input / Display

Accuracy

Thermocouple = ± 1^oC, PRT = ± 0.2^oC

CJC

0.1^oC / ^oC ambient

Update Time

500 mS

Noise Rejection

120dB

Input Types

Display Range

Software selectable from preset table of ranges

Case Sealing

IP64

Output

Display

4 digit, high brightness, red LED's

DC Supply

24V dc, 100mA Max (Optional 10V dc)

Alarm

Relay rating: 10A @ 240V ac into a resistive load. A 3A maximum is recommended for inductive loads. (1 x 10e7 Operations)

Power

Power Usage

Less than 3VA

Power Supply

90 - 264V ac, 50/60 Hz, 18 - 32V ac/dc 50/60Hz

Operating Temperature

0 to +50^oC
