Pulse

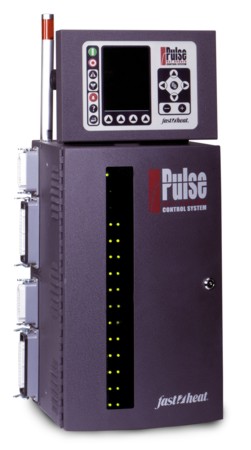

Pulse is the new System controller from Fast Heat, controlling up to 180-zones. These units come in 30-zone; 60-zone; 90-zone; 120-zone; 150-zone and 180-zone combined cabinets. Easily controlled with an eye-level, back-lit colour LCD panel. (Pulse I lower cost option for 2-24 Zones with black & white display only)

The system includes the following features as standard: -

  • Alarm Beacon
  • Alarm Sounder
  • Printer Port
  • System Abort Function
  • EvenSoak tool warm-up Function
  • AutoComp Thermocouple Failure Function.

A colour display is used to aid visibility. This is mounted into a compact display panel with industry standard icons applied to the buttons to ease use. This display is connected to the base unit using a cable that can be extended to enable it to be mounted remotely.

The Pulse system uses modules to ease maintenance and each module has status LED's which show through the tinted front panel of the case.

Pulse is supplied with ATP (Active Thermocouple Protection) as standard. This advanced feature automatically prevents high voltages, frequently caused by tool heater failures, from traveling up the thermocouple cables into the Pulse system and damaging the thermocouple input module.




SPECIAL OFFERS

Free Trial

If you would like to trial the Pulse controller for a two week period to see just how good it is and with no obligation to purchase, please Click Here

Please note that this offer is open to UK companies only.

Part Exchange

Fast Heat will take any operational hot runner controller in part exchange against the purchase of a Pulse controller. This offer is open to UK injection moulders. Please Click Here to register your details.

Special Features

  • All modules and systems available from stock.
  • Loan systems available.
  • Tool connection cables wired to customer specified configuration.
  • UK based technical support, including: Repair, Calibration and On-Site Maintenance.


Modules
    CPU Module

CPU Module

  • Part Number: KM044000
  • Availability: Ex-Stock
  • Master control card for Pulse system.
  • Front panel mounted power LED.
  • Front panel communication LED.
  • Front panel PSU failure LED's.
  • Keyed to prevent insertion into incorrect slot.
    T/C Module

Thermocouple Module

  • Part Number: KM044001
  • Availability: Ex-Stock
  • Input card for 30 thermocouples.
  • Front panel mounted power LED.
  • Front panel communication LED.
  • All thermocouples input fused with 125mA socketed fuses.
  • Keyed to prevent insertion into incorrect slot.
    20Amp Output Module

20A Output Module

  • Part Number: KM043000
  • Availability: Ex-Stock
  • Output card with 2 x 20A outputs.
  • Front panel mounted power LED.
  • Front panel output active LED.
  • Output live and return protected with 20A FF mounted fuses.
  • Keyed to prevent insertion into incorrect slot.
  • Interchangeable with 30A output module for maximum output flexibility.
    30Amp Output Module

30A Output Module

  • Part Number: KM043001
  • Availability: Ex-Stock
  • Output card with 1 x 30A output.
  • Front panel mounted power LED.
  • Front panel output active LED.
  • Output live and return protected with 30A FF mounted fuses.
  • Module keyed to prevent insertion into incorrect slot.
  • Interchangeable with 20A module for maximum output flexibility.


Optional Extras
    pulse on pedestal.jpg - 26424 Bytes

Standard Pedestal

The standard pedestal has provision for mounting two Pulse cabinets locating the display at eye-level. The standard pedestal also comes with cable hooks to keep the tool connection cables tidy.

Industrial wheels are provided, 2 with brakes, for ease of movement on the factory floor.

Part Number: KD020000-UK

Availability: Ex-Stock

Short Pedestal

A short pedestal is also available which has mounting for a single Pulse cabinet and which can be used in conjunction with the wall brackets to fit the Pulse to the wall.

Part Number: KD020000-UK-SHRT

Availability: Ex-Stock
    wallbracket.jpg - 20307 Bytes

Wall Bracket

The optional short pedestal, detailed above, has provision for mounting a single Pulse cabinet. However, when used with the wall mounting kit, the short pedestal can easily be adapted to fit the Pulse onto the wall.

By removing the fixing bolts on one side, the Pulse cabinet can easily be swung away from the wall to permit access to the rear.

Using the remote display kit in conjunction with the wall bracket, enables the Pulse cabinet to mounted out of the way, releasing valuable floor space, whilst the control and display panel can be mounted in a location more accessible to the operator.

Part Number: KD020000-UK-WALL-BR

Availability: Ex-Stock
    Pulse Remote Display

Remote Display Bracket & Cable

This bracket and cable enables the Pulse display to be mounted onto any suitable vertical surface up to 5m away from Pulse cabinet.

Part Number: KD023000-UK

Availability: Ex-Stock


Technical Specification

Value


Size (mm)

305 x 305 x 737 (w x d x h), (12 x 12 x 29 Inches) including display


Weight

25 kg (55 lbs)


Supply Voltage

380 - 440V ac / 50Hz (3 Phase, Neutral & Earth), US 4 Wire Delta wiring available on request



Number Of Zones

30 per cabinet on Pulse II, 24 on Pulse I (using 2 x 20 Amp Output Cards). 30/60/90/120/180 zone units avalable.


Output Voltage

220 - 240V ac (Low voltage output available on request)


Thermocouple Types Supported

Type J (Fe/CuNi) or Type K (NiCr / NiAl)


Accuracy

Control: ± 0.5% Updated every 100mS.
Calibration: < 0.2% Of Full Scale


Display Type

Pulse I 240 x 320 Pixels, White-On-Black, LCD with permanent backlight

Pulse II Colour display 1/3rd larger than the B&W display


Errors


Thermocouple

Open, Short. Reversed


Heater

Open, Triac Short


Alarm / Abort

Alarm Low, Alarm High, Abort Low, Abort High


System

Indicated via front edge mounted LED's on all modules


Support


Calibration Period

Recommended every 12 Months


Warranty

1 year parts & Labour 2 Years parts only.


Special Features


Even Soak

User selected. Brings up Manifold zones to setpoint before then bringing up tip and bush zones to set point


Bake Out

User selected. Low power timed bake out of tool.


Self Tune (Fast Tune)

User selected. Self tune of each zone applied to load to select optimum control parameters.


Boost / Idle

User selected. Individual settable setpoints for Boost and Idle functions.


Printer

Printer port fitted as standard for the printing of status reports.


Front Panel LED's

All modules have status LED's visible though a tinted window on front of base unit.


AutoComp

User selected. On the detection of a thermocouple failure, zone automatically slaves to another compatible zone, if available, of changes to manual power at average of recorded power.
