Conductor

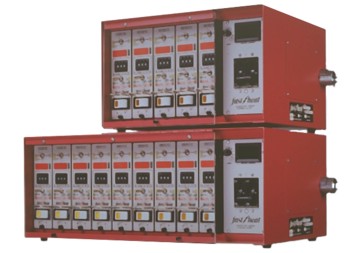

Conductor is the proven modular controller from Fast Heat. Mainframes are available in 1, 2, 5, 9 & 12 zone capacities with larger zone tools being accommodated with the use of multiple mainframes fitted to a pedestal.

15 Amp & 30 Amp modules are available and microprocessor technology enables each module to include such advanced features as: Automatic Earth Leakage Detection, Self-Tune and AutoComp.

Input sensor type is link selectable between Type J and Type K thermocouples.

Note: This product is gradually being replaced with our Pulse Series System Controller.

Special Features

  • All modules and systems available from stock.
  • Loan systems available.
  • Tool connection cables wired to customer specified configuration.
  • UK based technical support, including: Repair, Calibration and On-Site Maintenance.

Optional Extras

  • Mounting Pedestal
  • Remote Alarm Output
  • Current Output Display
Conductor 15Amp Module

Conductor 15A Module

  • Part Number: KM010004 (Degrees C), KM010000 (Degrees F)
  • Availability: Ex-Stock.
  • Temperature control module 15A output rating.
  • Fast blow fuse output protection.
  • Display of measured value and setpoint.
  • Automatic / Manual mode switch.
  • Digital display selectable between measured temperature, output power, diagnostic error code.
  • Keyed to prevent insertion into incorrect slot.
  • Front panel display of display units, alarm condition, soft start status.
Conductor 30Amp Module

Conductor 30A Module

  • Part Number: KM010005 (Degrees C), KM010001 (Degrees F).
  • Availability: Ex-Stock.
  • Temperature control module 30A output rating.
  • Circuit breaker output protection.
  • Display of measured value and setpoint.
  • Automatic / Manual mode switch.
  • Digital display selectable between measured temperature, output power, diagnostic error code.
  • Keyed to prevent insertion into incorrect slot.
  • Front panel display of display units, alarm condition, soft start status.
Conductor 5 Zone Mainframe

Conductor Mainframes

  • Part Numbers: KS020042 (Standard 5 Zone), KS020041 (Standard 9 Zone), KS020049 (Standard 12 Zone).
  • Availability: Ex-Stock.
  • Available in 2, 5, 9 or 12 zone formats.
  • Circuit breaker input isolator.
  • Supplied with 4m of 3ph power connection cable.
  • Optional current output meter.
  • Optional alarm output.
  • Rear mounted cooling fan with replaceable filter.

Technical Specification

Value

Size (mm)

1 Zone = 76 x 203 x 333 (H x W x D)
2 Zone = 222 x 114 x 333
5 Zone = 222 x 365 x 333
9 Zone = 222 x 572 x 333
12 Zone = 222 x 724 x 333

Weight

1 Zone = 10kg
2 Zone = 25kg
5 Zone = 25kg
9 Zone = 25kg
12 Zone = 25kg

Supply Voltage

380 - 440V ac / 50Hz (3 Phase, Neutral & Earth), US 4 Wire Delta wiring available on request

Number Of Zones

Single Zone Controller. 2, 5 9 & 12 Mainframes

Output Voltage

220 - 240V ac (Low voltage output available on request)

Thermocouple Types Supported

Type J (Fe/CuNi) or Type K (NiCr / NiAl)
Input compatible with grounded or ungrounded thermocouples.

Cold Junction Compensation (CJC)

Automatic, software and hardware based.

Thermocouple Open Circuit Protection

At start-up: Shuts down heater power, lights error message.
Whilst controlling: Automatic compensation lights error message and automatically switches to manual power at last recorded output power.

Accuracy

Control: 0.2% Updated every 200mS.
Calibration: < 0.2% Of Full Scale

Display Type

3 Digit, 7 Segment LED

Errors

Thermocouple

Open, Short. Reversed

Heater

Open, Triac Short

Alarm / Abort

Alarm Low, Alarm High

Ground Fault

Automatic reduction of output power on detection of earth leakage

Support

Calibration Period

Recommended every 12 Months

Warranty

1 Year

Special Features

Self Tune

Self tune of each zone applied to load to select optimum control parameters.

AutoComp

On the detection of a thermocouple failure, zone automatically changes to manual power at average of recorded power.

Options

System Pedestal

A pedestal is available for fixing up to 4 Conductor 9 or 12 zone mainframes to. The pedestal is supplied with a bottom tray and cable tidy hooks. Fixing mainframes to a pedestal makes then easier to move around the factory whilst the fixing angle improves usability. The pedestal is supplied unassembled.
Part Number: KD010000-UK.
Availability: Ex-Stock.

Soft Start

Timed reduction of output power to remove moisture from mould tool, reducing potential for controller and heater damage.

Current Meter

Front panel mounted meter showing current drawn by selected zone.
